MarvelXACT

Effortless precision. Maximum performance.

Say goodbye to leaks, dead volumes and time-consuming connections. The MarvelXACT UHPLC connection system was developed to meet the challenges of ultra-high performance liquid chromatography. With this innovative system, you can achieve reproducible results and unrivalled efficiency in your laboratory.









The MarvelXACT connection system: precision and reliability for liquid chromatography

Marvel



  • The MarvelXACT system is designed to provide reliable
    and repeatable face sealing on 10-32 tapered ports. An
    integrated, patented torque limiting mechanism protects
    against over- or under-tightening. Once the optimum
    torque is reached, the mechanism provides tactile feedback
    (audible/palpable „click“), ensuring correct installation
    without tools.
  • The integrated MarvelX sealing technology minimises internal
    dead volume, reducing the risk of carryover, peak
    tailing and peak widening. The system is made of highly
    resistant, bio-inert PEEK and stainless steel and enables
    over 100 reliable connection cycles. The fl exible 1/32“ OD
    capillary facilitates routing in the system. In addition, the
    patented technology automatically adapts to different
    port depths.

Your advantages at a glance:

  • No tools. No guesswork
    The revolutionary torque-limiting mechanism ensures a perfectly tightened connection - every time. A clearly perceptible „click“ signals that the optimum pressure point has been reached.
  • 100+ reuses guaranteed
    The robust connections are designed for over 100 reliable connections without sacrifi cing performance. This saves time and money.
  • Perfect results at the highest pressures
    MarvelXACT hoses can withstand pressures of up to 1,300 bar (19,000 psi) and minimise dead volume. The result: sharp peaks and improved resolution
  • Identification sleeve with length and ID
    The tubes are available in a three materials (PEEK-lined stainless steel, PEEKsil™, pure stainless steel) and inner diameters to meet the specifi c requirements of your analysis - also for bioinert applications
Marvel

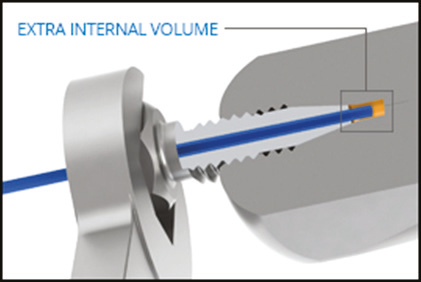

Conventional Fitting

Marvel

Conventional conical fi ttings require a ferrule in combination with the fi tting itself for proper sealing. They rely on complex techniques and specialised tooling for improved sealing performance. This signifi cantly increases the
likelihood of additional internal volume and poor chromatography results. The high tightening pressure required for assembly accelerates wear on costly components and leads to more frequent replacement requirements, significantly increasing overall costs.

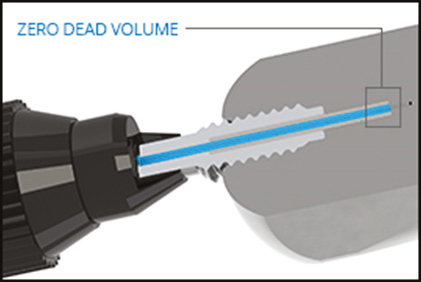

MarvelXACT Fitting

Marvel

Unlike conventional systems, MarvelXACT fittings do not require a ferrule. Sealing takes place directly at the lower end of the port, which considerably simplifies the assembly process. This not only reduces the required torque,

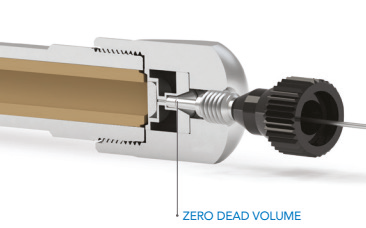

but also significantly increases the number of possible connection and disconnection cycles. MarvelXACT fittings reduce hardware wear and thus extend product life. A further developed, protected tip design also guarantees zero dead volume (ZDV) and optimises chromatography.

Ordering Information

Inner Diameter
(μm)		 Length
(mm)		 Volume (μl) Stainless
Steel		 PEEK-Lined
Stainless		 PEEKsil
25 150 0.075 - 980-35048 980-35068
25 250 0.123 - 980-35049 -
25 350 0.172 - 980-35050 980-35069
25 500 0.245 - 980-35051 -
25 600 0.295 - 980-35052 980-35070
50 150 0.295 - 980-35053 980-35071
50 250 0.491 - 980-35054 -
50 350 0.687 - 980-35055 980-35072
50 500 0.982 - 980-35056 -
50 600 1.178 - 980-35057 380-35073
75 150 0.663 - 980-35058 980-35074
75 250 1.104 - 980-35059 -
75 350 1.546 - 980-35060 980-35075
75 500 2.209 - 980-35061 -
75 600 2.651 - 980-35062 980-35076
100 100 0.785 980-35032 - -
100 150 1.178 980-35033 980-35063 980-35077
100 250 1.963 980-35034 980-35064 -
100 350 2.749 980-35035 980-35065 980-35078
100 500 3.927 980-35036 980-35066 -
100 600 4.712 980-35037 980-35067 980-35079
125 150 1.841 980-35038 - -
125 250 3.068 980-35039 - -
125 350 4.295 980-35040 - -
125 500 6.136 980-35041 - -
125 600 7.363 980-35042 - -
254 150 7.6 980-35043 - -
254 250 12.667 980-35044 - -
254 350 17.734 980-35045 - -
254 500 25.335 980-35046 - -
254 600 30.402 980-35047 - -
