Large-Sample Compartments

This large-sample compartment enables transmission and reflection measurements of various-shaped samples.

It has a built-in integrating sphere for accurate measurement of solid samples. It also features sample room around the integrating sphere to accommodate very large samples.

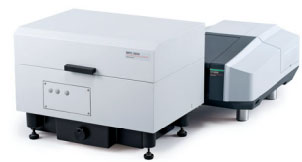

MPC-2200/3100 Multi-Purpose Large-Sample Compartment

- Measurement wavelength range: 240 to 800 nm (MPC-2200), 240 to 2600 nm (MPC-3100)
- Maximum sample size:
Transmission: 305 mm dia. x 50 mm T or 204 mm dia. x 300 mm T
Reflection: 305 mm dia. x 50 mm T - For UV-2450/2550 (MPC-2200), UV-3600 (MPC-3100)
MPC-2600 Multipurpose Sample Compartment

- Measurement wavelength range: 240 to 800 nm
- Maximum sample size:
Transmittance: 305 mm dia. x 50 mm T or 204 mm dia. x 300 mm
Reflectance: 305 mm dia. x 50 mm T
