ClickTek

ClickTek Ferrules (GC)

ClickTek technologies were created with the user’s point of view in mind, to simplify the troublesome process of replacing consumables. Just a single touch is needed to open the injection port and connect the column, making the liner and column replacement simple and easy. They also eliminate the risk of over-tightening or under-tightening the nuts, which could lead to damaged nuts or air-leaks. They were introduced with Nexis GC-2030 and are also available for GC-2010 (Plus) and GC-2025 series. The ClickTek ferrules can be used up to 350 °C.

P/N Pack Size Description

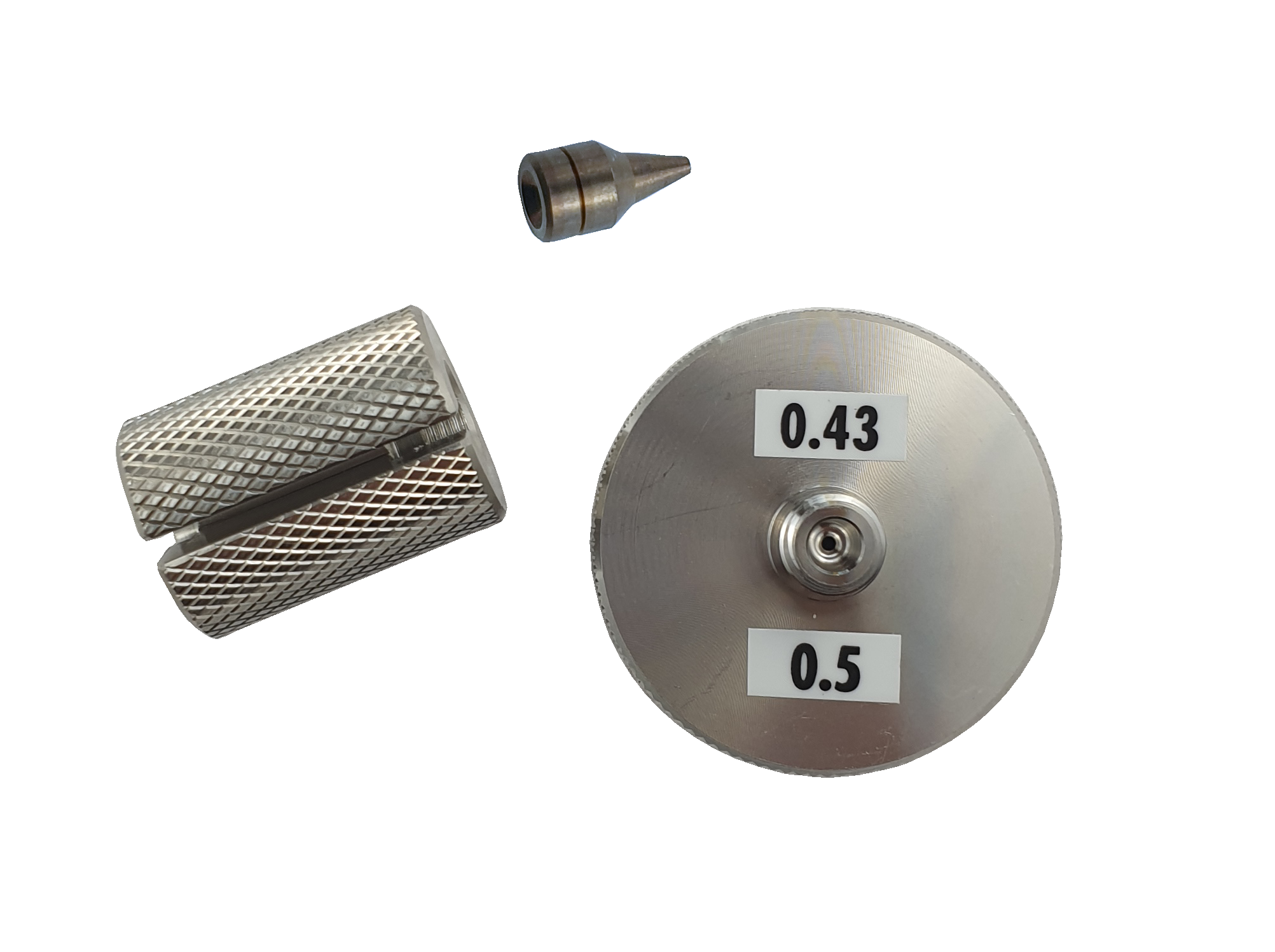

221-81162-11 6+1 ClickTek kit for 0.10 - 0.25 mm ID columns* (6 ferrules + fixing tool)
221-81162-11
221-81162-12 6+1 ClickTek kit for 0.32 mm ID columns* (6 ferrules + fixing tool)
221-81162-13 6+1 ClickTek kit for 0.53 mm ID columns* (6 ferrules + fixing tool)
221-81162-01 6 ClickTek ferrule for 0.10 - 0.25 mm ID columns*
221-81162-02

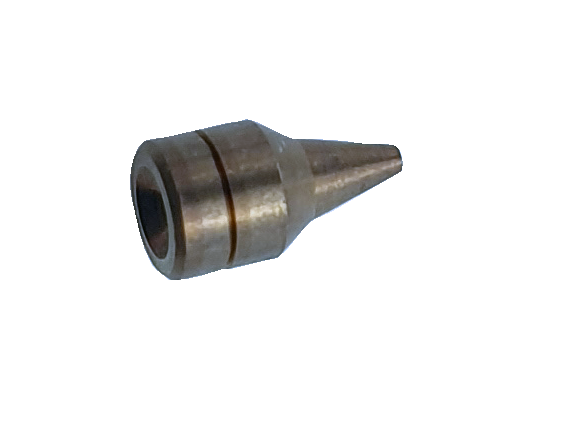

221-81162-02 6 ClickTek ferrule for 0.32 mm ID columns*
221-81162-03 6 ClickTek ferrule for 0.53 mm ID columns* and metal columns
221-81162-00 6 ClickTek ferrule without hole for blind plugging (e.g. for leak-checks)

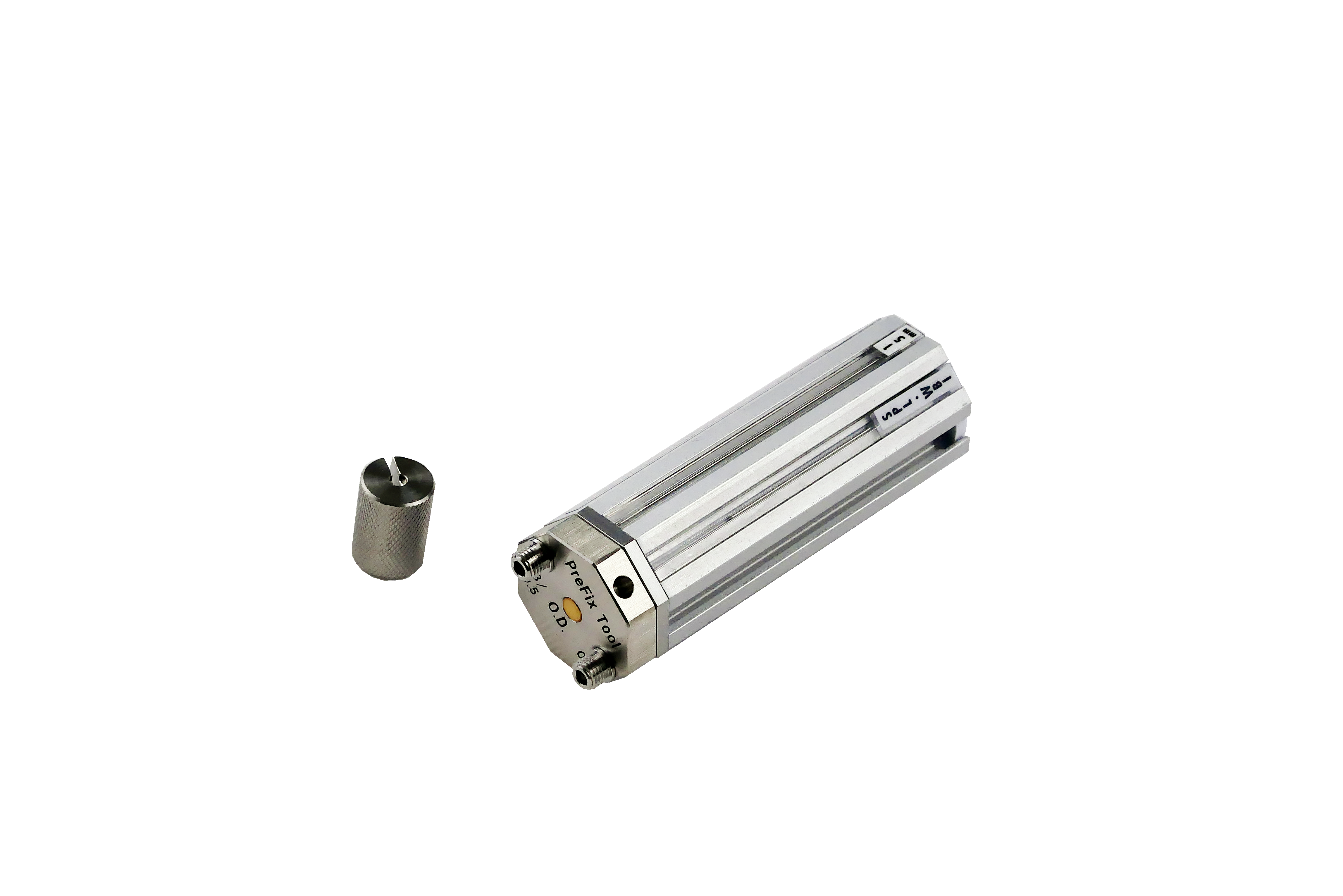

221-76547-43 1 Prefixing tool for ClickTek (for correct column length)
221-76547-43


*Column IDs corresponding to most fused silica capillary columns.
